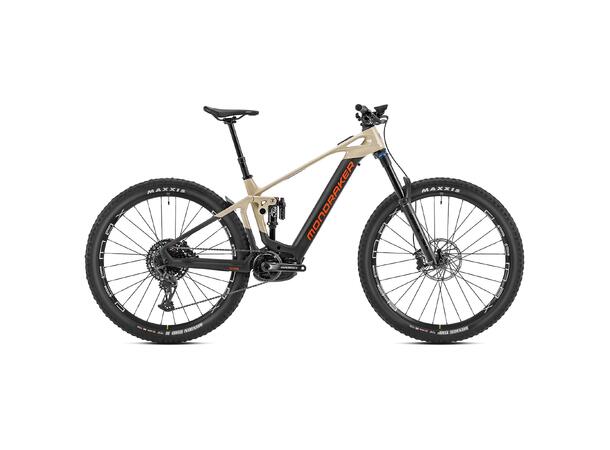

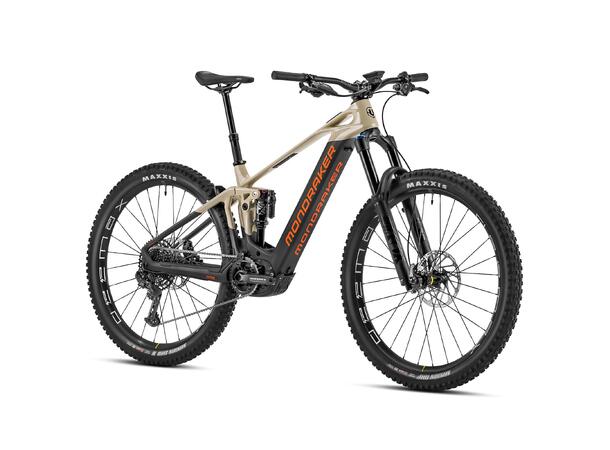

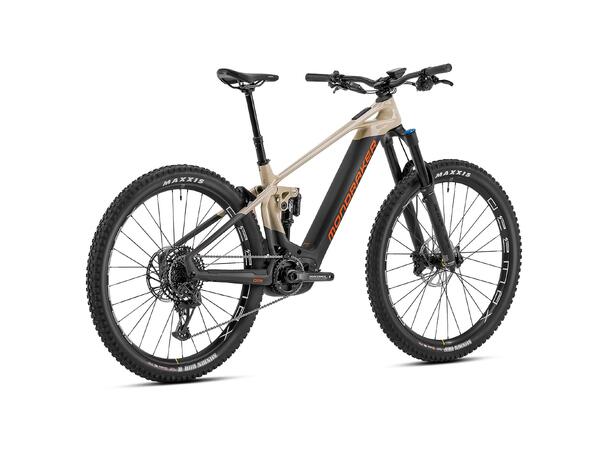

Crafty Carbon er et råskinn av en fulldempet elsykkel for deg som liker fart, flyt og moro fra start til mål.

Crafty Carbon er Mondrakers e-Enduro race maskin. Carbonutgaven er ca 1.5 kg lettere enn aluminiumsutgaven. Jo fortere det går, jo mer ber denne el-sykkelen deg om å slippe opp. Zero suspension føles bunnløs samtidig som den er svært fintfølende i starten av vandringen.

Med Bosch Smart System motor og den lekkert integrerte System Controlleren i topprøret har du enkelt full oversikt over modus og batteristatus. Enheten kan også styres fra styret via trådløs Mini Remote-kontrollen.

HØYDEPUNKTER:

• Bosch CX Performance Smart System motor med 85Nm
• Superlett Carbonramme
• Bosch System Controller og Mini Remote
• Fox 38 Fit Grip Evol 160mm dempegaffel
• Maxxis Minion 29x2,6" dekk
• SRAM Eagle GX drivverk tilpasset el-sykkel

SPESIFIKASJONER

• Ramme:Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
• Gaffel:: Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
• Bakdemper: Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
• Styrelager: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
• Styre: Onoff Krypton 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
• Stem: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
• Setepinne: ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
• Hjulsett/felger: Mavic E-Deemax 29, 30mm internal width, tubeless ready, 28 spokes
• Nav/aksling - Bak:Mavic, Boost 12x148mm, sealed bearings, IS 6 bolts
• Nav/aksling - Foran: Mavic, Boost 15x110mm, sealed bearings, IS 6 bolts
• Dekk:Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ protection, 120TPI, folding bead
• Bremser: SRAM DB8
• Bremseskiver: SRAM Centerline 200mm
• Krankarmer: Race Face Aeffect ebike, 165mm
• Kranklager: Integrert i motor
• Frontgir: N/A
• Bakgir: SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
• Grirkifter: SRAM NX Eagle
• Kassett: SRAM PG-1230, 11-50T, 12s
• Kjede: SRAM NX Eagle, 12s, Powerlock
• Pedaler: N/A
• Motor: Bosch CX Performance 85Nm Smart System
• Battery: Bosch Smart System 750Wh
• Controller: Bosch Smart System w/Mini Remote
• Vekt: 23.9 kg
