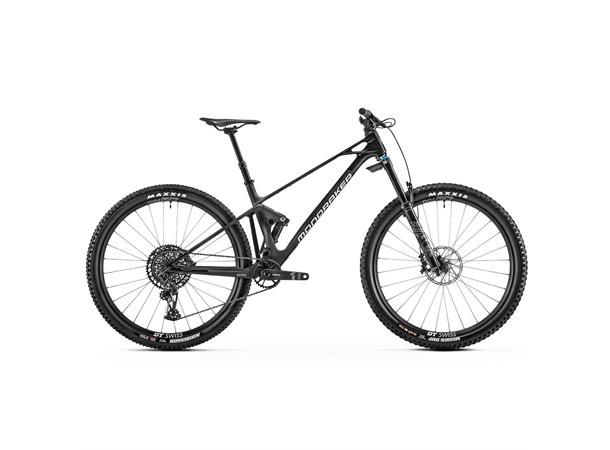

Med de beste egenskapene hentet fra crosscountry og enduro, er Mondraker Raze R rett og slett en rask stisykkel optimal for norske forhold.
Mondraker Raze Carbon R er en sykkel store deler av sykkelmiljøet har ventet på; en rask stisykkel lettere enn en tradisjonell endurosykkel, med 150mm vandring foran og 130mm vandring bak. Kort sagt en stisykkel som passer perfekt for norske forhold.
Kjenner du litt til Mondraker fra før, kan vi godt kalle Raze Carbon R for en "mini-Foxy".
HØYDEPUNKTER
- Raze 29 Stealth Air full Carbon-ramme
- 150mm/130mm dempervandring
- 29-hjul
- SRAM-komponenter
- 13.2 kg
SPESIFIKASJONER
- Ramme: Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
- Størrelser: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
- Bakdemper: Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings
- Dempersettings: Light compression, light rebound, air volume spacer 0.6
- Gaffel: Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
- Styrelager: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
- Stem: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
- Styre: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
- Holker: Onoff Diamond, 1lock-on, 135mm
- Setepinne: Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
- Sete: Fizik Antares R7
- Bremser: Sram G2, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Bremsehendel: Sram G2, SwingLink, tool-free reach adjust
- Felger: DT Swiss XM1700 Spline 29, 30mm internal width, welded aluminum, tubeless ready, 28 spokes DT Competition, straightpull
- Frontnav: DT 350, Boost 15x110mm, IS 6 bolts
- Baknav: DT 350, Boost 12x148mm, 36T SL Ratchet system, IS 6 bolts, XD freehub
- Frontdekk: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
- Bakdekk: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
- Kranksett: Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
- Krankdrev: 32T, CNC-machined alloy, X-SYNC 2
- Kranklager: Sram DUB BSA, sealed bearings, 73mm
- Kjede: Sram NX Eagle, 12s, Powerlock
- Gir: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
- Girsjalter: Sram Trigger NX Eagle, 12s, X-Actuation 1:1
- Kassett: Sram XG-1275, 10-52T, 12s
- Girøre: Sram UDH
- Vekt: 13.2 kg
