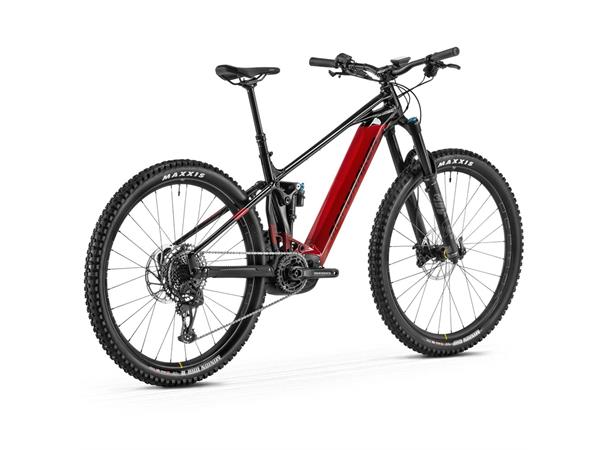

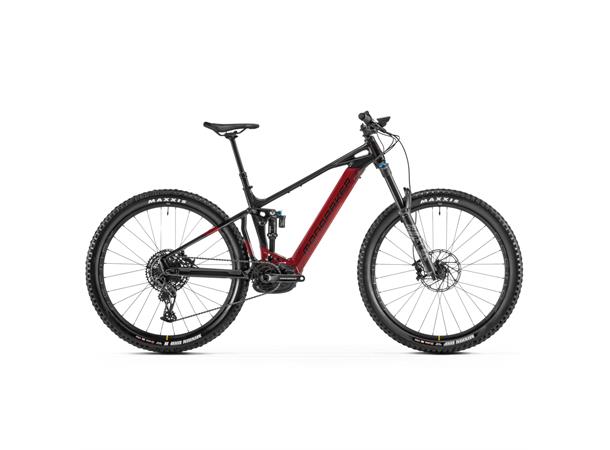

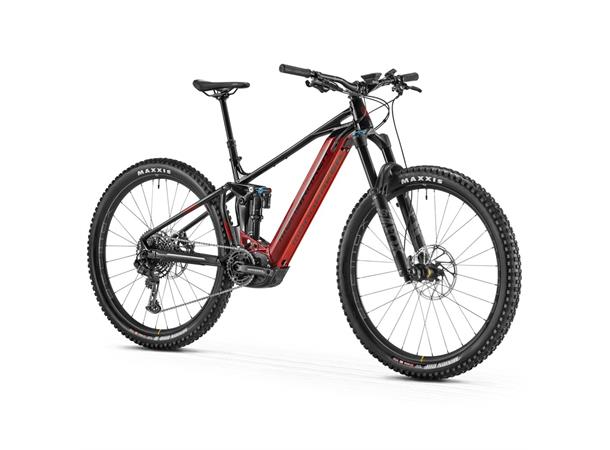

Med Bosch-motor, Bosch-batteri og Fox-dempere med 150mm/160mm vandring, er Mondraker Crafty R en av de råeste fulldempede el-syklene i sin klasse – uansett om du sykler enduro eller sti.

Crafty R takler det aller meste av det du måtte finne på å sykle av terreng. Med 29-hjul kommer du deg raskt fremover i terrenget, godt hjulpet av Bosch Performance Line-motoren med 750Wh-batteri, slik at du kan holde det syklende (s)mil etter (s)mil.

Crafty-modellene fra 2022  har også fått ny plassering på ladepunkt, ny dropout for slim speed sensor og fidlock integrert pocket.

HØYDEPUNKTER

• Lett 6061 alu-ramme
• Ny plassering ladepunkt
• Fox Float/Fox 38 150mm/160mm dempervandring
• Bosch Performance Line-motor
• Bosch Powertube 750 Wh-batteri

• Ramme: Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
• Størrelser: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
• Bakdemper: Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
• Demperinnstilling: Medium compression, medium rebound, air volume spacer 0.2
• Gaffel: Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
• Styrelager: ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
• Stem: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
• Styre: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
• Holker: ONOFF Diamond, 1lock-on, 135mm
• Setepinne: ONOFF Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
• Sete: FIZIK Terra Aidon X5 145mm
• Bremser: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
• Bremsehendel: SRAM G2 R, tool-free reach adjust
• Felger: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes Mavic J-bend duble butted, contactless lacing
• Frontnav: Mavic, Boost 15x110mm, IS 6 bolts
• Baknav: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
• Dekk: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
• Kranksett: Race Face Aeffect ebike, 165mm
• Krankdrev: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
• Kjede: SRAM SX Eagle, 12s, Powerlock
• Gir: SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
• Girsjalter: SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click
• Kassett: SRAM PG-1210, 11-50T, 12s
• Girøre: Mondraker M068
• Vekt: 25.3 kg
• Display: Bosch Kiox 300
• Motor: Bosch Performance Line CX Cruise (25Km/h) Bosch Smart System
• Batteri: Bosch Powertube 750Wh
