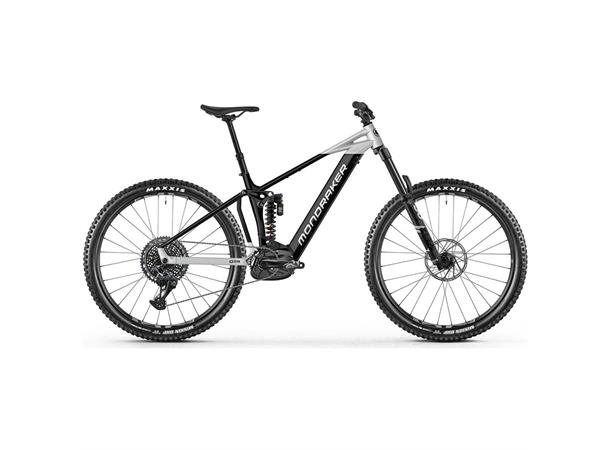

Med 170mm/180mm dempervandring er Mondraker Level R en drøm av en elektrisk endurosykkel.

Slenger du på 29-hjul sammen med Mondrakers progressive geometri som er spesielt utviklet for fulldempet el-sykkel, sitter du med en skikkelig superenduro-maskin mellom beina.

I 2022 fikk Level R-modellen ny plassering av ladepunkt, samt blant annet ny LED-remote og ny Kiox.

HØYDEPUNKTER

• Grov endurosykkel
• Fox-dempere 170mm/180mm
• SRAM-drivverk
• Bosch-motor/Bosch 750Wh-batteri

• Ramme: Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
• Størrelser: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
• Bakdemper: Fox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings
• Dempersetting: Medium compression, medium rebound. Spring rate: S/M size 300 lbs, L size 350 lbs, XL size 400 lbs
• Gaffel: Fox 38 29 Float FIT GRIP EVOL Performance, 180mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
• Styrelager: ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
• Stem: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
• Styre: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
• Holker: ONOFF Diamond, 1lock-on, 135mm
• Setepinne: ONOFF Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
• Sete: FIZIK Terra Aidon X5 145mm
• Frontbrems: SRAM Code R, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Bakbrems: SRAM Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Bremsehendel: SRAM Code R, tool-free reach adjust
• Felger: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes Mavic J-bend duble butted, contactless lacing
• Frontnav: Mavic, Boost 15x110mm, IS 6 bolts
• Baknav: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
• Dekk: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
• Kranksett: Race Face Aeffect ebike, 165mm
• Krankdrev: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
• Kjede: SRAM SX Eagle, 12s, Powerlock
• Gir: SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
• Girsjalter: SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click
• Kassett: SRAM PG-1210, 11-50T, 12s
• Girøre: Mondraker M068
• Vekt: 26.6 kg
• Display: Bosch Kiox 300
• Motor: Bosch Performance Line CX Cruise (25Km/h) Bosch Smart System
• Batteri: Bosch Powertube 750Wh
