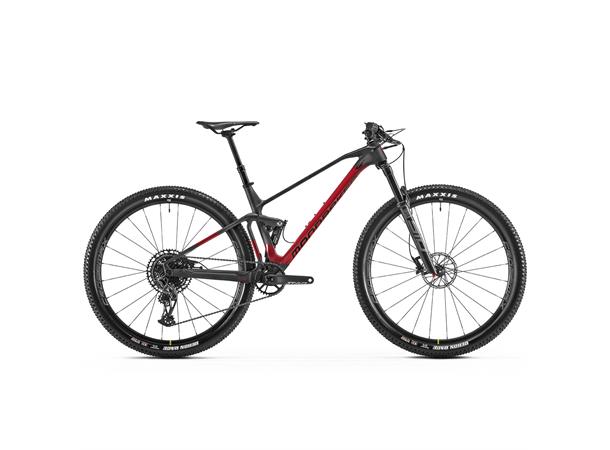

Med sitt racing-DNA er det ikke rart at Mondraker Bikes satser på crosscountry-sykler med høy ytelse. F-Podium Carbon DC er intet unntak.

Mondraker sine xc-sykler er stadig å se på World Cup-pallen og den spanske produsenten tar mål av seg å sette standarden i utvikling og dekke behovene til dagens topputøvere.

HØYDEPUNKTER

• 29 Stealth Air Full Carbon-ramme
• 12.4 kg
• Demperoppsett tilpasset moderne XC-traséer
• SRAM-drivverk


SPESIFIKASJONER

• Ramme: F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 115mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
• Størrelser: S: 390mm / M: 420mm / L: 470mm / XL: 510mm
• Bakdemper: Rockshox SID Select+ RLR Debonair, 185x50mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
• Dempersetting: Light compression, medium rebound, Lockout 430, 1 Token
• Gaffel: Rockshox SID Select RL 29, 120mm, Charger, Debonair, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload
• Styrelager: Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
• Gaffel remote: RockShox OneLoc
  MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
• Styre: ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
• Holker: ONOFF Twin, 1lock-on, 135mm
• Setepinne: ONOFF Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M/L/XL size 387x125mm
• Sete: Fizik Antares R7
• Forbrems: SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Bakbrems: SRAM Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Bremsehendel: SRAM Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
• Felger: Mavic Crossmax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes Mavic straightpull duble butted, contactless lacing
• Frontnav: Mavic, Boost 15x110mm, IS 6 bolts
• Baknav: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
• Dekk: Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
• Kranksett: Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
• Krankdrev: 34T, steel, X-Sync 2
• Kranklager: SRAM DUB BSA, sealed bearings, 73mm
• Kjede: SRAM SX Eagle, 12s, Powerlock
• Gir: SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
• Girsjalter: SRAM Trigger SX Eagle, 12s, X-Actuation 1:1
• Kassett: SRAM XG-1230, 11-50T, 12s
• Girøre: SRAM UDH
• Vekt: 12.4 kg
